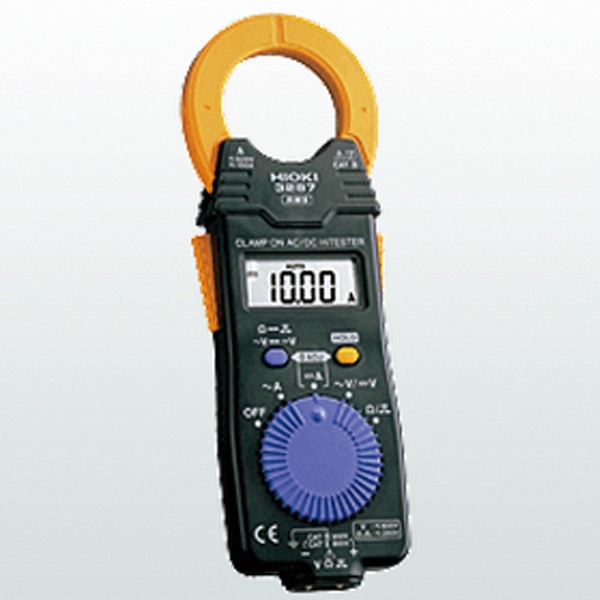

AMPE KÌM ĐO AC/DC HIOKI 3287

Hinh ảnh sản phẩm

AMPE KÌM ĐO AC/DC HIOKI 3287 Mã sản phẩm: HIOKI 3287 Tiêu chuẩn: Xuất xứ: Hioki-Japan Tình trạng: Mới 100% Bảo hành: 12 tháng 6,570,000 VND Mua Hàng

• Thông số kỹ thuật
• Bài Viết
• Hình Ảnh
• Video

DC Current	10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current	10.00/ 100.0 A, (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage	419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage	4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, True RMS)
Resistance	419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Crest factor	2.5 and under (150 A, 1000 V max.)
Other function	Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display	LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply	Coin type lithium battery (CR2032) ×1, Continuous use 25 hours
Core jaw dia.	φ 35 mm (1.38 in)
Dimensions, mass	57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz)
Supplied accessories	Instruction Manual ×1, TEST LEAD L9208 ×1, CARRYING CASE 9398×1
