Applications

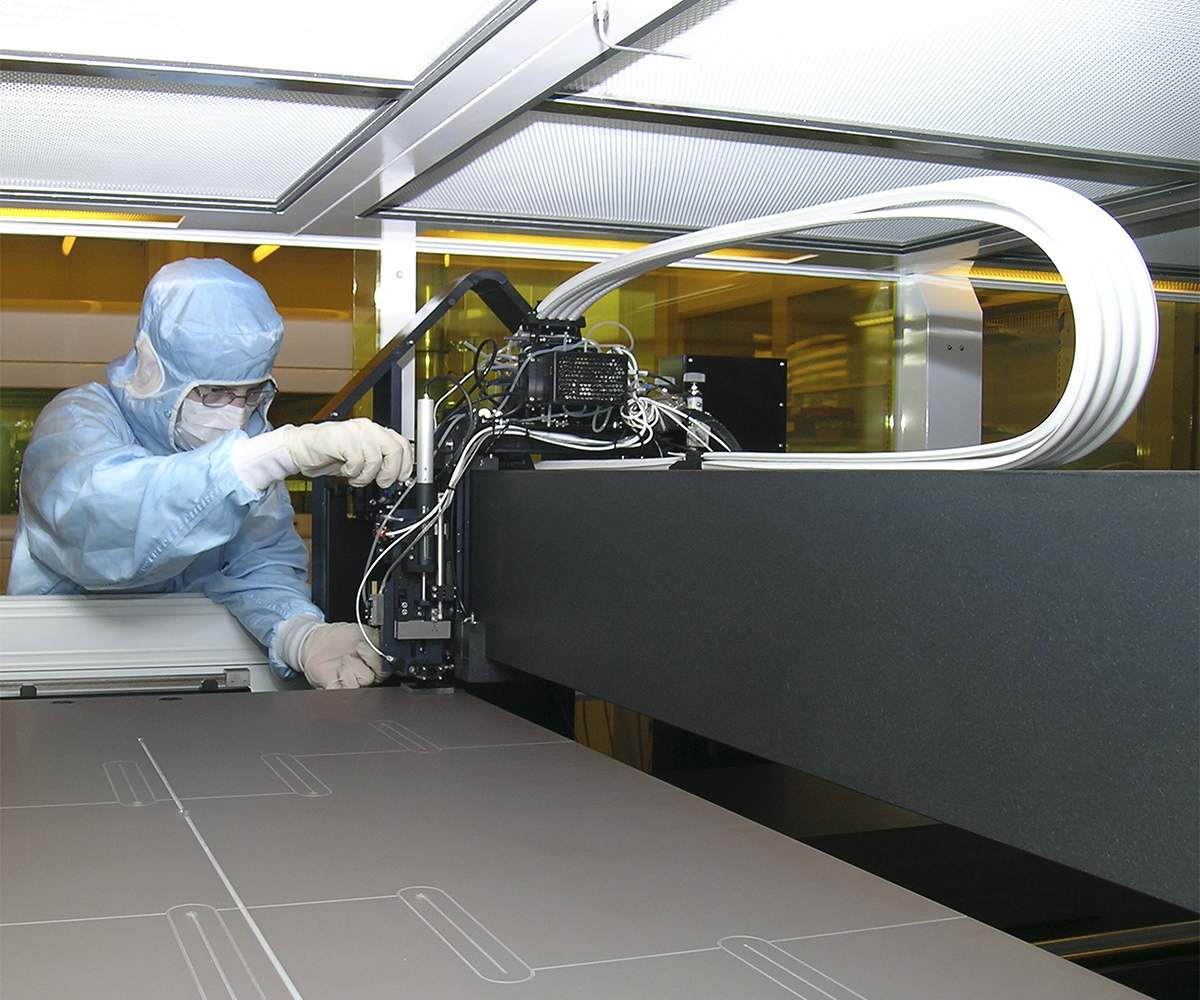

- cable moves in machine visions system (Camera)
- high-speed image scanning/processing
Product Specifications for GORE® Trackless Cable
| Benefits |
|---|
- Eliminate cable track
- Simpler cable management system
- Reduced lead times
- Smaller minimum order quantities
- Simple configuration/design process
- Smaller package, better utilization of space
|
| Features |
|---|
- Flex Life of greater than 10 million cycles2 at 2 in (51 mm) Bend Radius (see info on Flex Life)
- Standard options for quick solutions

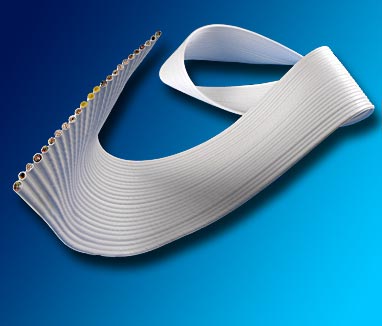

- Hybrid cable configurations
- Cables can be stacked providing a smaller package

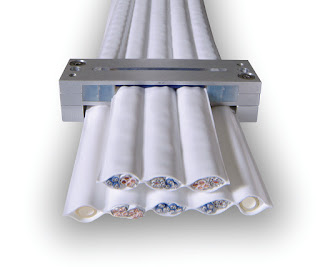

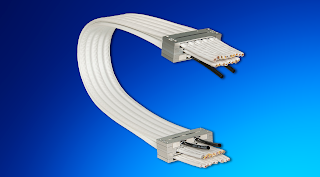

- Pre-installed clamps, ready to be terminated and dropped into your application
- Clean room compatible
- Routable through tight spaces between flex regions
- Vertical and horizontal rolling flex motion
|
| Specifications |
|---|
| Maximum Self-Supporting Stroke Length1 | 60 in (1500 mm) |
| Maximum Overall Length of Each Cable | 16.4 ft (5.0 m) |
| Maximum Acceleration | 4 G (39 m/s2) |
| Minimum Bend Radius | 2 in (51 mm) |
| Temperature | -40 to 80°C |
| Clean Room | Class 1 |
| Cable Width | 1.10 to 2.77 in (27.8 to 70.1 mm) |

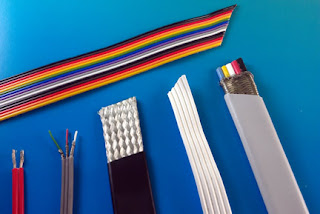

| Cable Types Available | Shielded Signal, Shielded Power, Video, Ethernet, IEEE 1394b, and Pneumatic Tubes |
| Max No. of Cables Stacked | 3 (depending on acceleration and stroke length) |
| Cable Certifications | UL3, RoHS, CSA |
1 Base plate required.
2 One cycle is defined by one back and forth motion.
3 UL Style 21090:80°C, pnuematic tubes are not UL recognized.
NOTICE - USE RESTRICTIONS APPLY. Not for use in food, drug, cosmetic, or medical device manufacturing, processing or packaging operations. |
Features and Benefits:
- UL Style 21090
- Flame retardant
- Low friction surface
- Used in Class 1 cleanroom applications
- Low Particulation
- Color: white
|  |
|
 |
| Results Aging Test |
|---|
| Longitudinal Original | Tensile Strength (Mpa) |
|---|
| | 24,6 |
| AfterThermal Conditioning |
|---|
| | 22,1 |
| After Chemical Conditioning | Tensile Strength
(% Weight Change) |
|---|
| O-236 | 22,1 (+7.5) |
| G-354 | 24,3 (+13.1) |
| O-156 | 24,7 (+4.9) |
| H-515 | 17,7 (+8.6) |
| OZ-OIL S220 | 30,9 (+4.7) |
| Harmonic Grease | 31,5 (+7.10) |
|
|
| Test Conditions |
|---|
| Thermal Conditioning |
|---|
| Temperature of Air Oven | 121°C |
| Aging Duration | 120 hours |
| Chemical Conditioning |
|---|
| Temperature of Chemicals | 23°C |
| Test Duration | 24 hours |
Chemicals acc.VG 95214-4
Engine lubrication oil (O-236)
Aircraft grease (G-354)
Lubrication oil, synthetic (O-156)
Hydraulic fluid, petroleum based (H-515)
Customer Chemicals
Machine-tool oil (QZ-OIL S220)
Harmonic grease |
|
|
| Tape Specification |
|---|
| Property | Units | Nominal Value | Comments |
|---|
| Operating Voltage | V RMS | 300 | |
| Operating Temperature | °C | -40°C to 90°C | |
| Jacket Material | Compound of ePTFE |
|---|
| Tensile Strength | % of original | 80 | Jacket material aged for 120h in full draft |
| Elongation to Break | % of original | 85 | circulating-air oven at 121°C |
| Chemical Tests | | 23°C 24 ± 0.5 hours |
|---|
| Designation Nato Code | | | Nato Code O-236, G-354, O156, H-515, H-544 |
| Tensile Strength | Mpa min. | 7 | Primary insulation is not affected by these oils |
| Elongation to Break | % min. | 100 | |
| Increase of Mass | % max. | 10 | |
|
