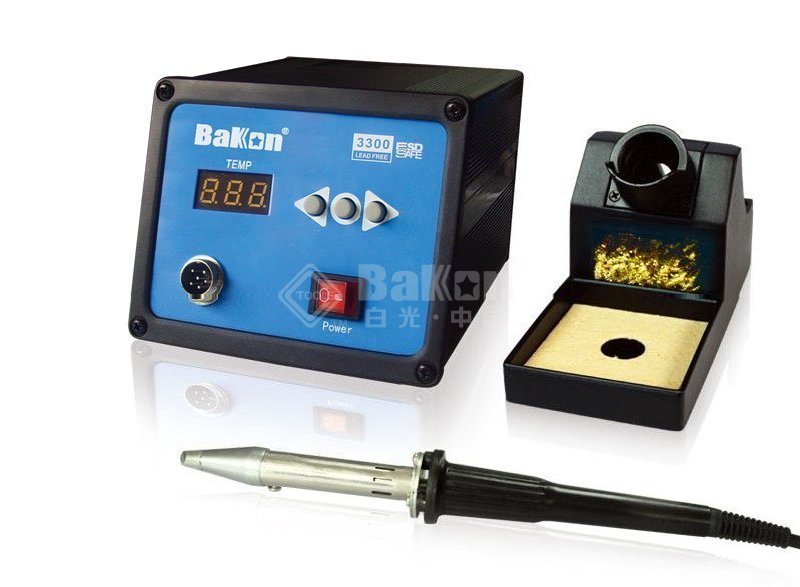

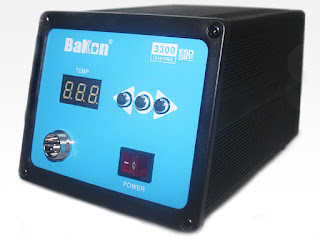

Soldering Station Model: BK3300
|
- Thông số kỹ thuật
- Bài Viết
- Hình Ảnh
- Video
Features
♦ Large LCD display, easy to read out♦ Temperature adjusted in ±1oC
♦ Silver vortex heating element, great heat conduction
♦ 200W switching power supply, hige power temperature compensation
♦ Ideal for lead free, high mass applications such as solar panel soldering
♦ Vacuum Nano technology used for soldering tip electro-plating,
protect tip from oxidation,corrosion,high temperature
♦ Automatic sleep, stand by, temperature lockout functions
200~500''C 200W high frequency soldering station B
Soldering station
Order No：200~500''C 200W high frequency soldering station B
Technical Data
| Model | BK3300 |
| Power Rating | 200W |
| Input Voltage | AC220V 50HZ |
| Temperature Range | 50-600oC |
| Tip resistance to the ground | ≤2Ω |
| Tip to the ground potential | ≤2mV |
| Stability | ±2 oC(at 25/45%) |
| Weight | 1.5kg (w/o soldering iron) |
| Dimensions | W126×L170×H105mm |
| Length of cord | 1.7 m |
| Soldering Iron | LF305 |
| Compatible Tip | BK500 |
| Heating element | VH200,silver vortex heater |
| Iron Holder | BK508 |
